Metal Laser Engraver VS-F10

Metal Laser Engraver
Metal Laser Engraver Model: VS-F10

The high-speed metal laser engraver VS-F10 is representative of the VISION fiber laser marking machine series. It is a popular choice amongst advertising professionals and is valued for the personalized touch that it brings to mundane items. It provides precision engraving and marking for gifts, laptops, mobile phones, and much more. It is capable of producing designs such as logos, bar codes, and matrix coding.

Below are some metal laser engraving samples

Advantages
1. The metal laser engraver is equipped with a fiber laser with 100,000 hours of potential service life. It is much more stable than a diode laser.
2. The fiber laser source is air-cooled and does not require an industrial chiller. This allows users to save significantly in terms of power consumption. In contrast, the air-cooling method is eco-friendly and much more quiet.
3. The laser source is highly integrated. The lack of an industrial chiller allows the machine to be much more compactly built than diode laser variations. It can be modified for portability.

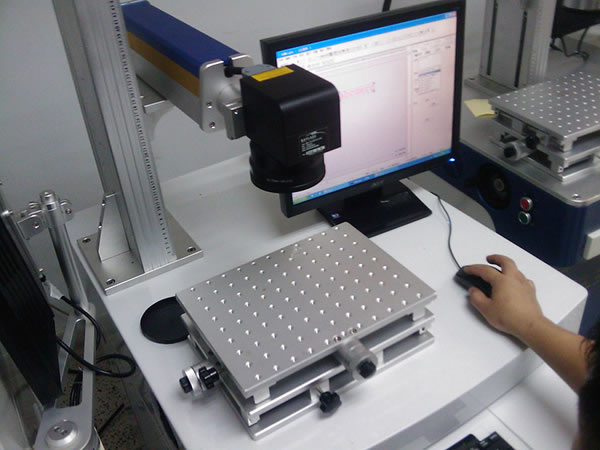

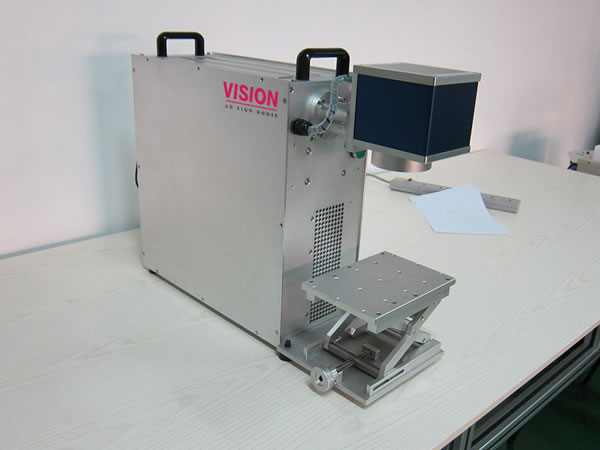

Two working table type   Portable type

Working Concept
The diagram provides a simplified explanation of the basic working principle behind the laser marking machine. The major components of the device include the laser source, scan head, and control system.

Fiber Laser Source
The fiber laser source of our metal laser engraver is provided by Raycus™, the most trusted brand in China. Its service life is nearly 10 times that of a diode laser marker.


High Speed Scan Head


The scan head can reach high marking speeds of up to 8000mm/s while maintaining a minimum marking line width of 0.015mm. It is utilized for logo or pattern engraving and is excellent for adding a personalized touch to gifts and other items.

Control System & Marking Software


1. Barcode Engraving
Engrave different 1D and 2D barcodes including Code39, EAN, EAN-128, Code-128, UPC-A, Data Matrix, etc. Extended Data Matrix ECC 200 access mode enables Data Matrix dot generation.

2. Image Engraving
JCZ marking software supports image engraving. Accepted picture formats include BMP, JPG, GIF, TGA, PNG, TIF, TIFF, etc. Images can be engraved on lighters, laptops, cell phones, and more. It is excellent for item personalization.

3. Variable Text Engraving
Support is provided for Excel, txt files, dynamic files, and customized database files. Applicable forms of data include date, time, file list, fixed text, serial number, COM, and network communication.

4. Document Support
Support is provided for documents formats such as PLT, DXF, AI, DST, BMP, JPG, GIF, TGA, PNG, TIF, and TIFF.

5. Text Input
Power text input functions are included. Support is available for TrueType, JSF (JCZ Single Font), DMF (Dot Matrix Font), and user-defined font types.

6. Hatcher
The filling of 2D polygon lines and layer structures can be achieved with various styles. Beam compensation of closed polygon lines is done during hatching.

Applicable Industries
The metal laser engraver is utilized extensively in industries such as glass, machining, electronics, and microelectronics.

Applicable Tasks
The machine is designed for marking and engraving designs such as logos and barcodes on items including laptops, cell phones, doorplates, etc.

Technical Specifications
ModelsVS-DP50
Laser power50W
Working area (mm)100*100 (Default)150*150, 200*200, 250*250, 300*300
Repeating frequency0-50 KHz
Light beam quality< 6
Minimum line width0.015mm
Repeating precision±0.0025mm
Laser wavelength1064nm
PositioningVisible Red Diode Light

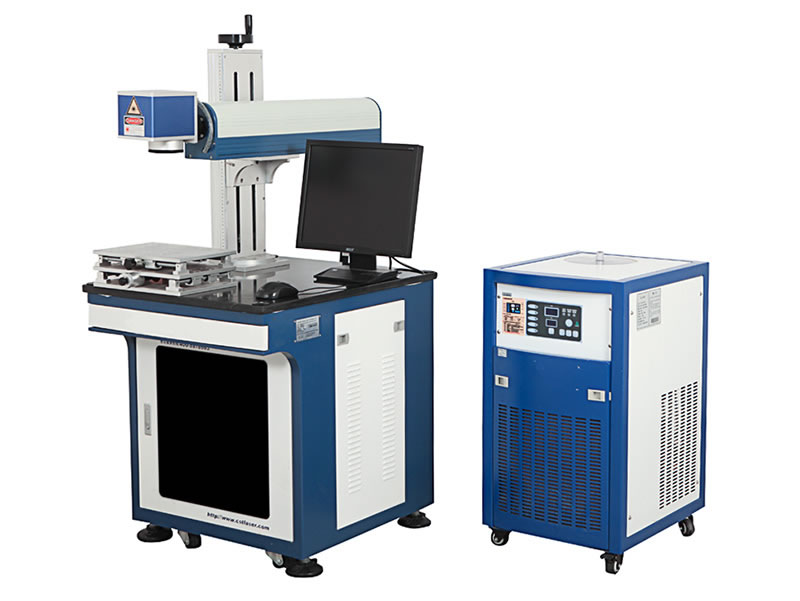

CoolingWater Cooled (Industrial chiller)
Power supply220V/50Hz (Default), 110V/60Hz
If need other standard power supply, please tell our salesman.
Power consumption1.5KW2KW
