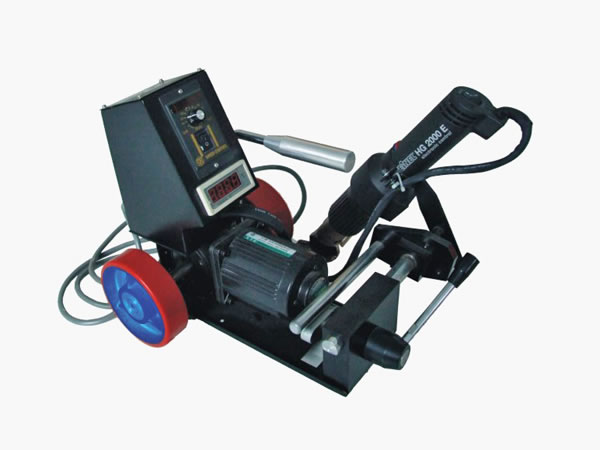

Automatic Hot Air Banner Welder (Type A)
The type-A automatic hot air banner welder has an automatic cool-down system and can bind materials such as PE, PVC, flex banner, plastic cloth, and printing cloth. Our machine is built with the acclaimed Leister heating-system, imported from Switzerland. Temperatures are displayed digitally. Optional add-ons include the laser guiding unit and portable walking unit.
| Welding Speed | 7.5m/min(Max) |
| Working voltage | 230V |
| Welding Temperature | 80-530 ℃ |
| Air Flow | 200-270L/min |
| Welding Thickness | 1-5mm |
| Driving speed | 1.0-7.5m/min |
| Measurement | 440X300X320 mm |
| Net Weight | 20kg |
| Gross weight | 25kg |
Automatic Hot Air Banner Welder (Type B)
The type-B automatic hot air banner welder is our latest model. While similar to the original type-A, this variation is distinguished by its innovative frame and excellent mobility.
| Voltage | Single Phase 50Hz 220V±10% |
| Power | 2KW |
| Temp Display | Yes |
| Speed Display | Yes |
| Speed | 1-6m/min |
| Welding thickness | 1-5mm |
| Pack Size | 440×300×320(mm) |
| Size | 480×330×350(mm) |
| Weight | 20Kg |
Related Names
Banner Welding Machine | Banner Welding Equipment | Hot Air Welder
