CNC Router

CNC Router Model: VS-1290

The VS series CNC router is commonly applied in the advertising industry for the processing of materials such as MDF, wood, acrylic, bill board, KT board, ABS board, PVC board, plastic mold, and double-color board.

  • Strong Machine Body

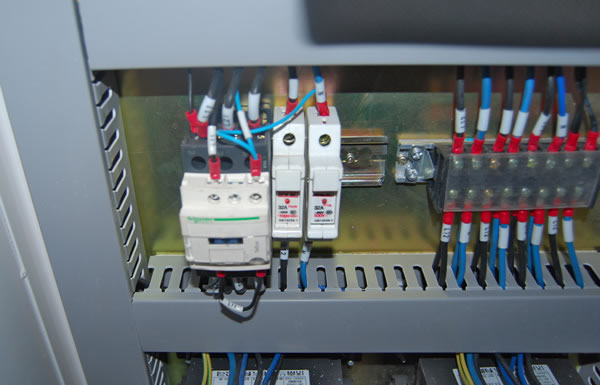

  • Schneider A.C. Contactor

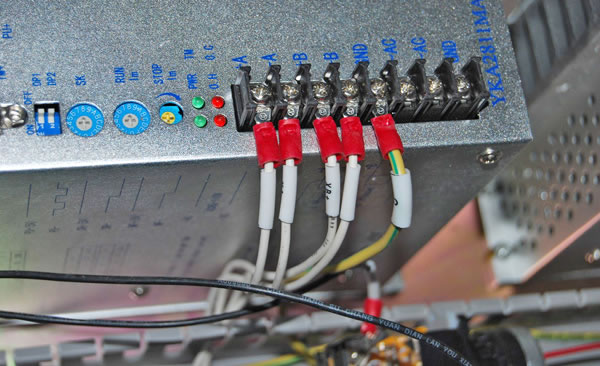

  • High quality electrical system

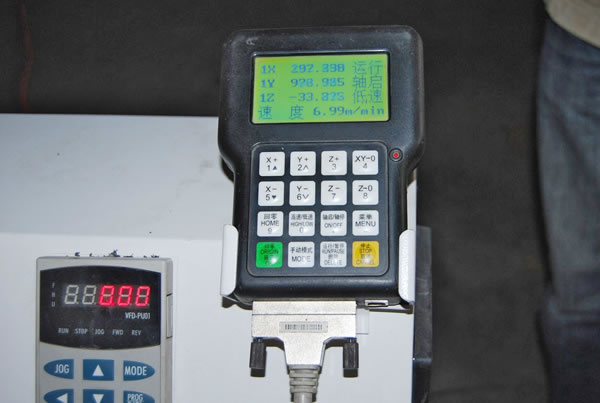

  • Controller

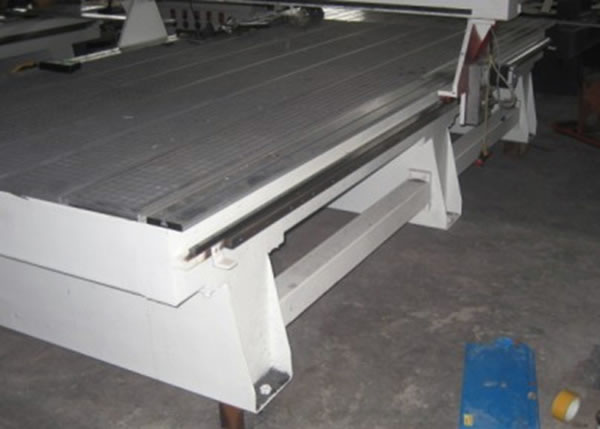

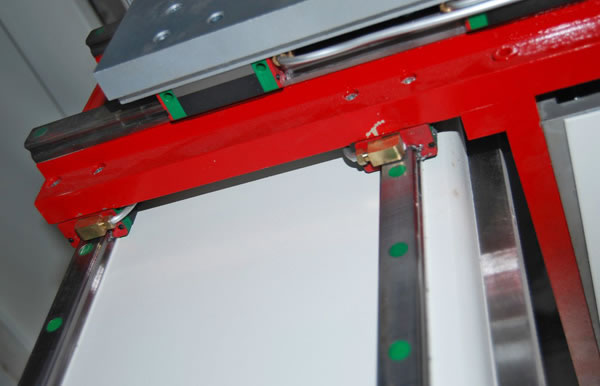

  • Rail

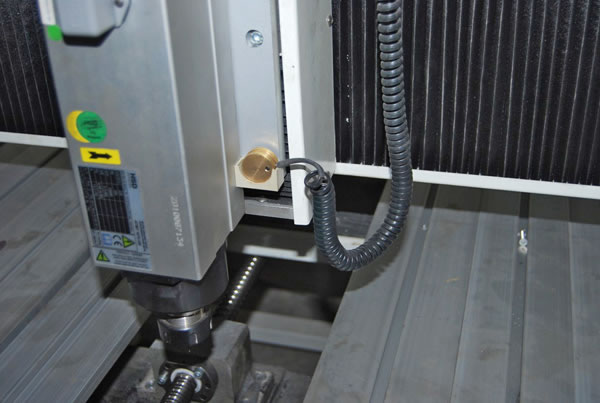

  • Powerful Spindle
  • Thick Steel

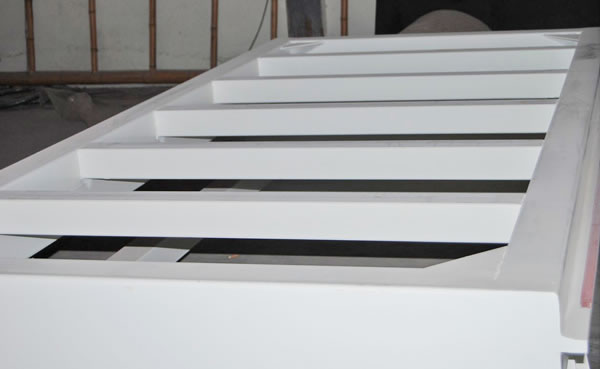

  • Strong Steel Frame

Features
1. The CNC router comes with 128M memory and has support for off-line operation. It can read files directly from a U-disk.
2. The spindle moves accurately and does not deviate during high speed operation. Highly responsive and capable of rapid acceleration, it can yield very precise engraving results.
3. Breakpoint memory prevents data loss in the event of unexpected power loss.
4. The machine is fitted with a total of 18 blades and 4 collets (1/2, 1/8, x6, x4).

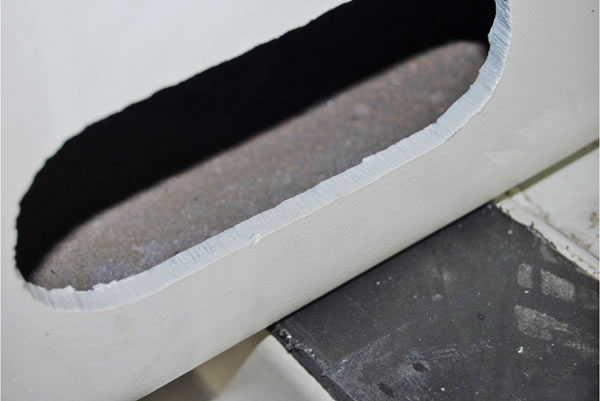

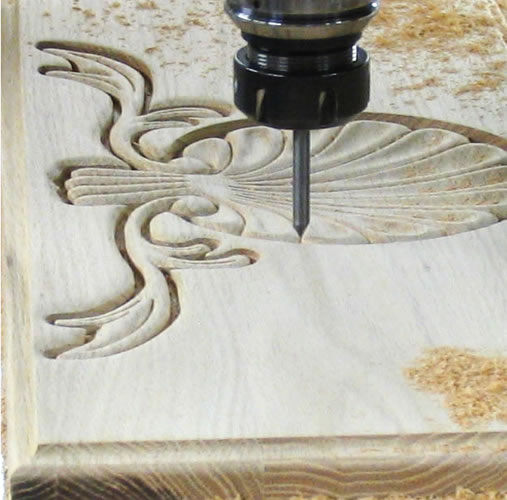

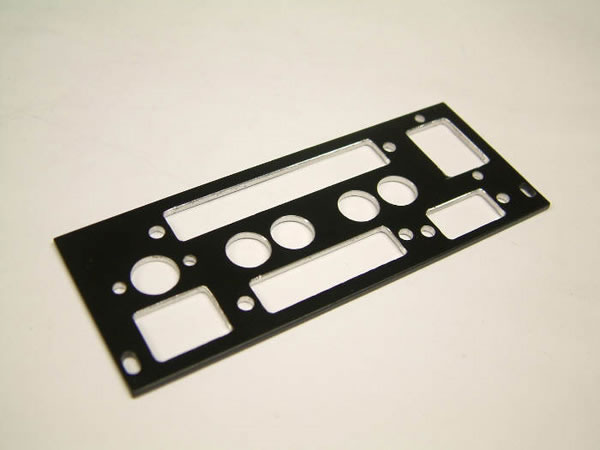

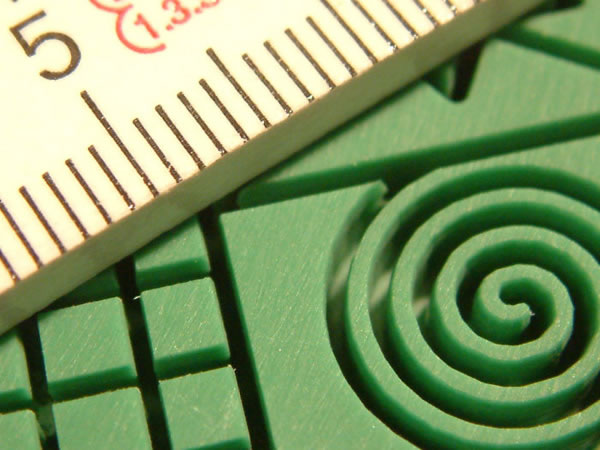

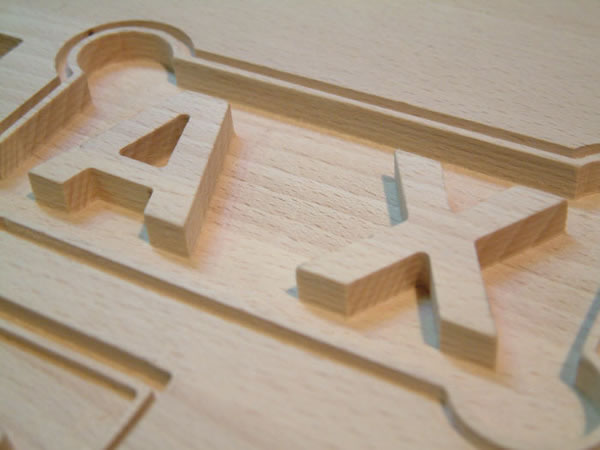

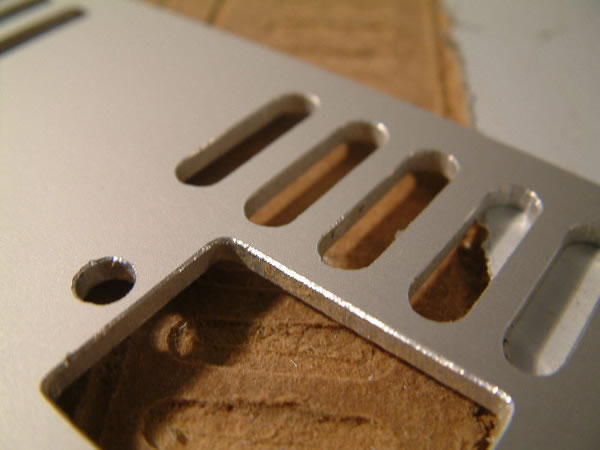

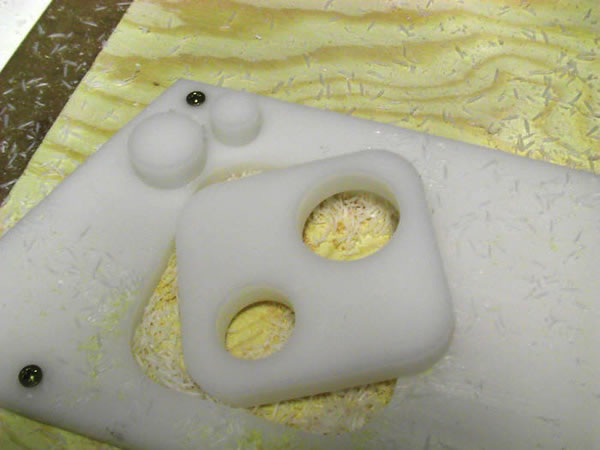

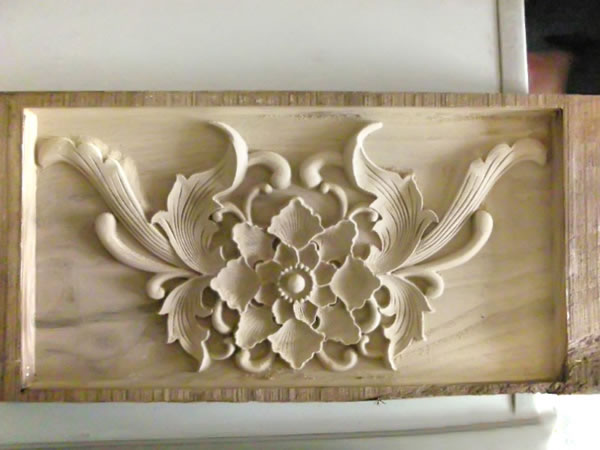

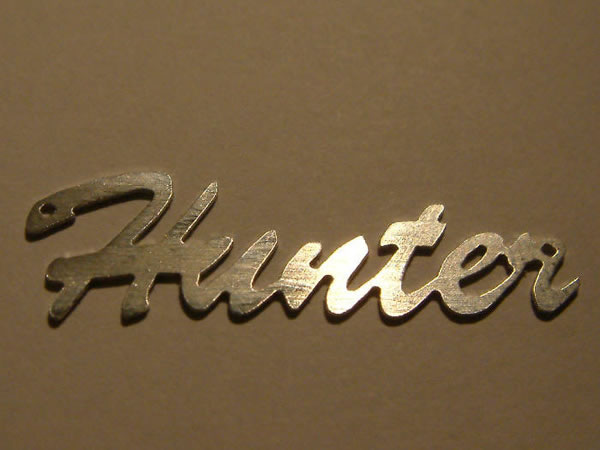

Samples

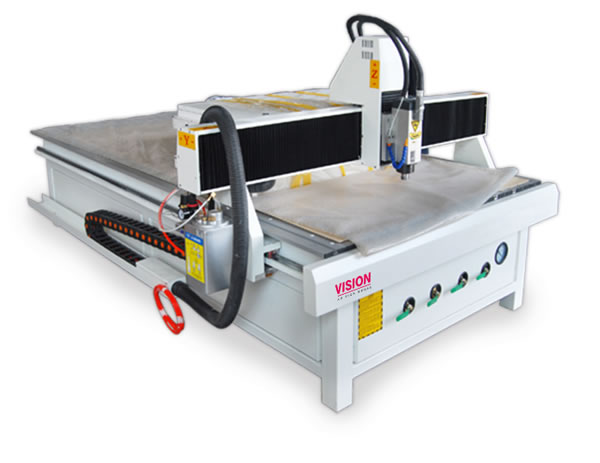

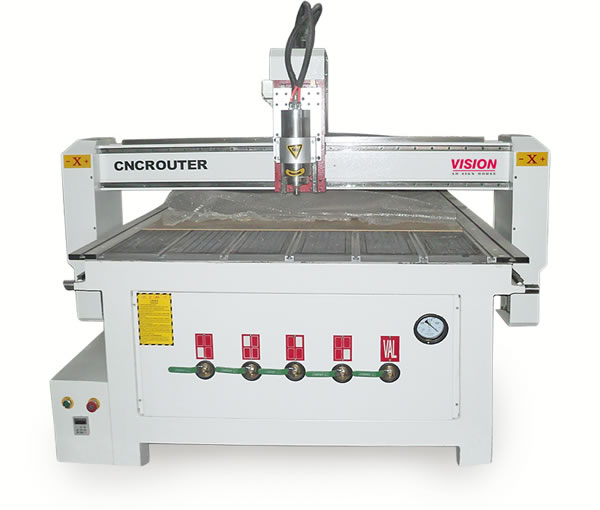

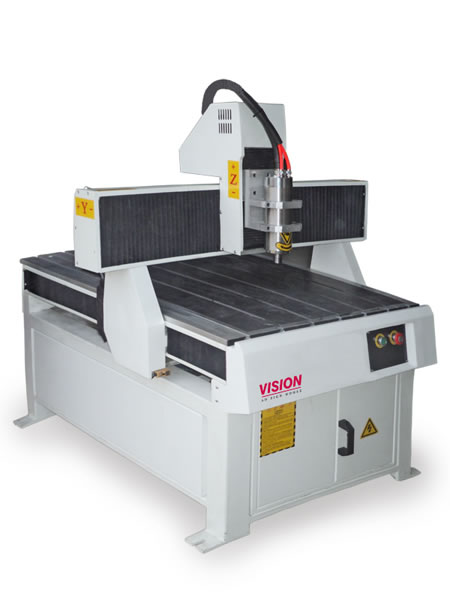

Machine Photos

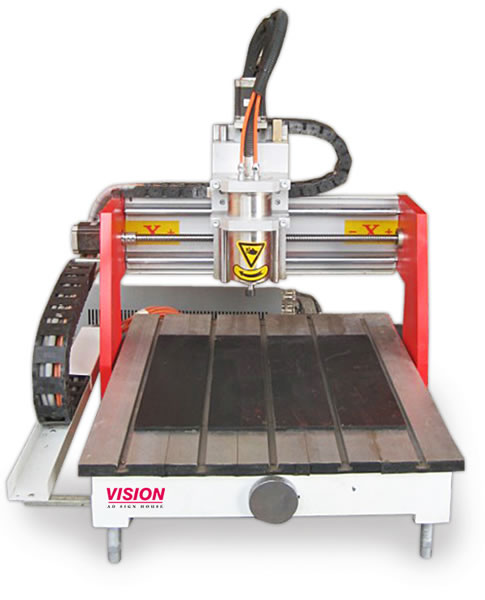

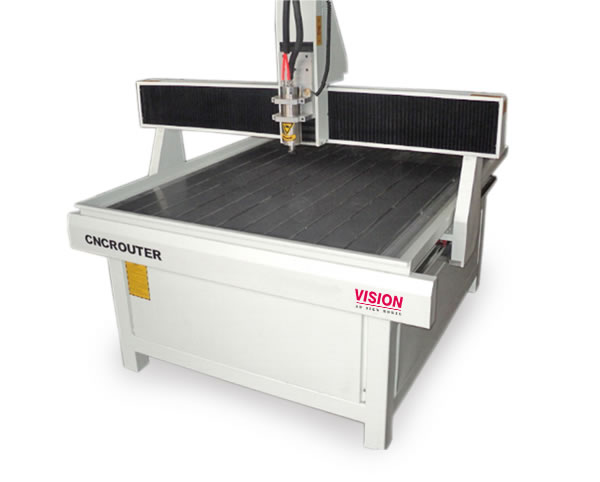

VS4040 VS9060 VS1212 VS1224 VS1325D


Technical Specifications
Models VS-4040 VS-6090 VS-1212 VS-1224 VS-1325D
Working area
(XYZ, mm)
400*400
*60
600*900
*100
1200*1200
*100
1200*2400
*120
1300*2500
*160
Table size (mm) 450*640 780*1080 1320*1350 1440*2915 1440*2915
Spindle Power 0.8KW
water
cooling
spindle
1.5KW
water
cooling
spindle
1.5KW
water
cooling
spindle
1.5KW
water
cooling
spindle
2.2KW
water
cooling
spindle
Speed 0-18,000
RPM
0-24,000
RPM
0-24,000
RPM
0-24,000
RPM
0-24,000
RPM
Linear motion system X axis Ball screw, Round rail Rack, Round rail
Y axis Ball screw, HIWIN linear rail Rack, HIWIN linear rail
Z axis Ball screw, Round rail
Precision Working ±0.01mm
Repositioning ±0.02mm
Speed Max air line speed 10,000mm/min
Max working peed 6,000mm/min
Operating system DSP with USB interface
Motors Stepper
Working voltage AC380V/50Hz
Dictate of operation G code
Software compatibility Type3/Artcam/Castmate, etc
Machine body structure Casting steel Welding steel
Net Weight 450kg 250kg 750kg 850kg 1080kg
Optional parts Spindle Water cooling (2.2KW/3.0KW/4.5KW) or Italy HSD air cooling (1.5KW/3.0KW/4.5KW)
Multi-spindle (2pcs, 3pcs, 4pcs, or more)
Motor Japanese Servo motor
Others Dust collector
Vacuum pump
Rotary device
