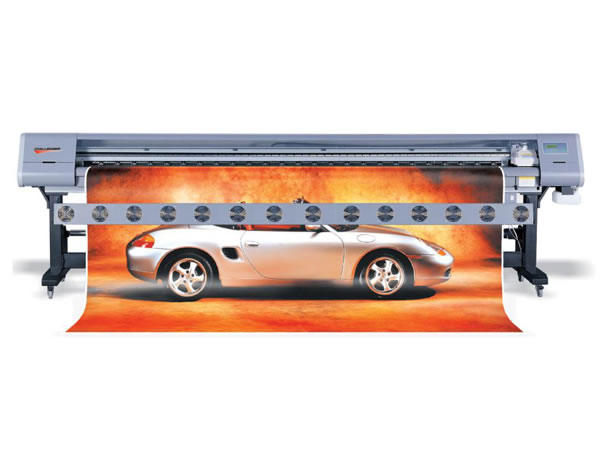

Large Format Solvent Printer FY-33VC

Large Format Solvent Printer FY-33VC
Infiniti/Challenger Xaar Large Format Printer Model: FY-3312C (33VC)

8 years of success and showing no signs of decline, the large format solvent printer FY-33VC is a true classic from Infiniti/Challenger. It is utilized extensively in the outdoor advertising industry.

Technical Specifications
Product Model FY 3312C
Print head XAAR126/200
Number of Print head 4,8,12 Heads
Maximum Print Width 3200mm
Output (m²/h)
240x540 3 pass 40
240x720 4 pass 35
720x720 8 pass 22
InkType : Solvent Ink
Color : 4 Colors( C , M , Y , K , )
Media Width : 3300mm
Type : Vinyl, Flex, Polyester, Back-lit Film, Window Film etc.
Auto Media Feeding System Equipped (Max. Media Weight 80kg )
Auto Cleaning System Positive Pressure Cleaning
Anti-clogged Flash Function & Capping System
Pre-heating & Drying System Equipped
Interface USB
RIP Software Maintop, Ultra Print, Photo Print, Topaz, Wasatch, Caldera
Input Power AC 220V, 50Hz/60Hz
Machine Dimension L4390 x W780 x H 1280 mm Net Weight : 340Kg
Package Dimension Normal Package L4400 x W920 x H 1540 mm
Package B L4400 x W850 x H 950 mm Gross Weight : 620Kg

High Printing Speed
Xaar 126 Piezo print heads are compactly built and featherweight. Up to 16 of these can be fitted into our printer, allowing for exceptional printing speeds.

Power-off Protection
This function automatically saves critical system information during unexpected power-offs, protecting users from data loss. The printer resumes normal operations when a stable power source becomes available.

Prevent Collision
Heavy-duty suction fans are placed under the printing platform to discourage collisions between carriage and print media, preventing damage to the print head.

Wide Application
The Infiniti Xaar large format solvent printer FY-33VC is designed for usage within the Ad sign industry. It can process a multitude of print media including mesh, vinyl, banner, vehicle wrap, window film, one-way vision vinyl, etc.
