Wide Format Solvent Printer FY-33VB

Products » Wide / Large Format Solvent Printer » Xaar Solvent Printer » Wide Format Solvent Printer FY-33VB

Infiniti/Challenger Xaar Wide Format Printer Model: FY-3316B (33VB)

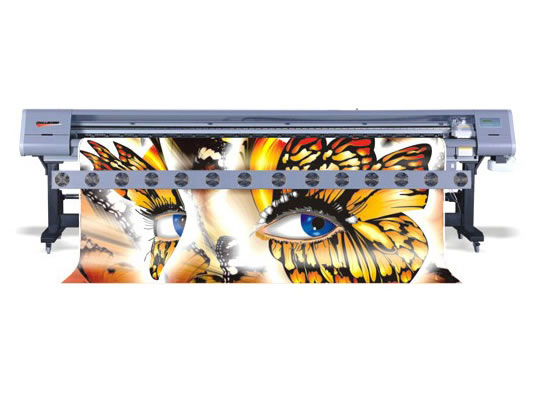

The wide format solvent printer FY-33VB is an old Infiniti/Challenger model that was first launched 8 years ago. Far from obsolete, this model offers excellent cost performance and is a tried-and-true companion for outdoor advertising professionals. The low-cost Xaar 128 Piezo print heads are lightweight and compact, making a perfect fit for the motion rail and machine body.

Technical Specifications

MODEL		FY-3304B	FY-3308B	FY-3312B	FY-3316B
Print Head		On demand Piezo Head Xaar 128
Number of Print head		4	4×2	4×3	4×4
Ink Type		Solvent Ink
Printing Width		3200mm ( 125.98")
Resolution		720dpi
Speed	Draft	18.00 m²/h	35.00 m²/h	48.00 m²/h	70.00 m²/h
	Standard	9.60 m²/h	17.50 m²/h	26.25 m²/h	35.00 m²/h
	High Quality	7.00 m²/h	14.00 m²/h	21.00 m²/h	28.00 m²/h
Media	Max Width	3300mm( 129.92")
	Type	Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film
Heating System		Pre-heater & Dry System Equipped (Fan Optional)
Auto Media Feeding & Take-up System		Optional
Auto Cleaning System		Positive Pressure Cleaning, Anti-Clogging Flash Function
Print Interface		USB 2.0 or High Speed Printing Interface Card
RIP Software		Infiniti RIP or Maintop
Dimension & Weight	Machine	L 4,100mm×W 770mm×H 1,120mm & 390kg
	Packing	L 4,470mm×W 880mm×H 1.300mm & 480kg

High Printing Speed
Our printer can be fitted with a maximum of 16 print heads, guaranteeing excellent printing speeds.

Print Head Protection
Powerful suction fans are installed underneath the printing platform. This setup prevents collisions between carriage and print media, effectively shielding the print heads even during high speed operation.

Economical Solvent Ink (XAAR 128)
The Xaar 128 print head has an 80pl nozzle, which allows for a high degree of ink compatibility. It is cheaper to replenish than print heads from brands such as Konica, Epson, and Spectra.

Application
The wide format solvent printer FY-33VB is a trusted tool of the Ad sign industry. It produces excellent results from print media such as mesh, vinyl, banner, vehicle wrap, window file, and perforated vinyl.
