Large Format Solvent Printer UD-3266E

Products » Wide / Large Format Solvent Printer » Seiko Solvent Printer » Large Format Solvent Printer UD-3266E

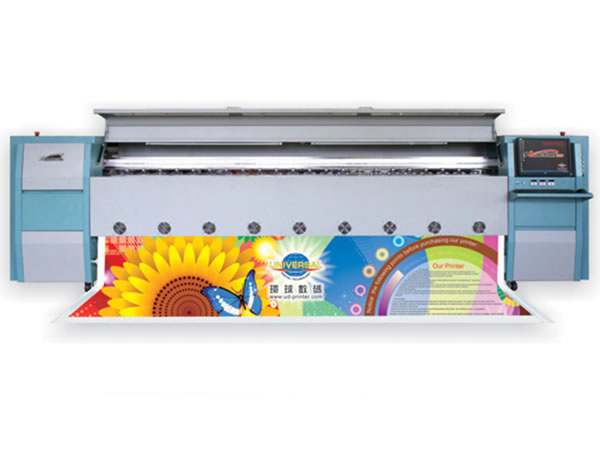

Phaeton Seiko Print Head Large format Solvent Printer Model: UD-3266E

The Infiniti/Challenger large format solvent printer UD-3266E is the perfect solution for 6-color high speed printing. Very few printers in the large format category can map two Seiko print heads to a single color. The 6-piece Seiko SPT 1020 print head has double the printing width of the SPT 510, enabling twice the printing speed.

Technical Specifications

Model No.			UD-3266E
Print head		Type	Seiko Spt1020 35pl
		Quantity	6
Resolution (dpi)			1080dpi
Color			6 color
Speed		1 pass	Draft Mode 101sqm/h
		2 pass	Standard Mode 76sqm/h
		3 pass	Resolution Mode 51sqm/h
Media		Width	(129.92")
		Types	Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film
Cleaning System			Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System
Heating System			Pre, Mid, Post Heater, Cooling Fan System
Environment			Temperature: Humidity:40%-60%
Rip Software			Photoprint, UltraPrint, Topaz, Maintop, Caldera, Wasatch
Print head Height			(Max)
Interface			USB 2.0
Power			AC220V, 50HZ/60HZ, 500W-1800W
Size Weight	Machine		L4786 x W930 x H / 724±
	Packing		L4980 x W1150 x H / 1064±

6-Color Printing
Our printer can print in the colors C, M, Y, K, Lc, and Lm. Users can achieve vivid results that simply cannot be matched by 4-color printing. This distinct advantage provides a much needed leverage for advertising professionals, helping them secure higher profit orders.

Automatic Voltage Adjustment
Voltage for the Seiko print head is adjusted automatically according to temperature. This feature resolves common nozzle clogging issues.

Software
The Infiniti/Challenger large format printer adopts Maintop/Photoprint software, providing a user-friendly interface for easy toggling between two printing types.

Print Head Cleaning
The individual color cleaning function makes printer maintenance a breeze.

Application
The Seiko large format solvent printer is an invaluable tool for the Ad sign industry. Accepted types of printing media include mesh, vinyl, banner, vehicle wrap, window film, perforated vinyl, and others.

Related Names
Printing Machine Using Solvent Ink | Wide Format Solvent Printing Equipment | Solvent Printer with Self-cleaning Print Head
