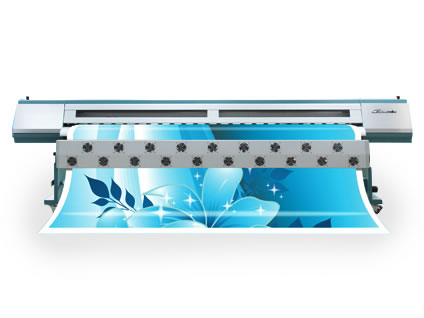

Wide Format Solvent Printer FY-3266R/08R

Infiniti/Challenger Seiko Wide Format Solvent printer Model: FY-3266R/08R

The 6-color Infiniti/Challenger wide format solvent printer FY-3266R/08R has a 1020 nozzle print head for each color, granting you double the printing speed of 510 models. In effect, its performance is on par with inkjet printers that are equipped with twelve Seiko SPT510 print heads.

Technical Parameters

Model			FY-3266R	FY-3208R
Print head		Type	Seiko Spt1020 35pl	Seiko Spt510 35pl
		Quantity	6	8
Resolution			1080dpi	720dpi
Color			6 colors	2×4 colors
Speed		1 pass	Draft Mode: 101m²/h	Draft Mode: 101m²/h
		2 pass	Standard Mode: 75m²/h	Standard Mode: 76m²/h
		3 pass	Resolution Mode: 50sqm/h	Resolution Mode: 51m²/h
Media		Width	3300mm (129.92")
		Types	Frontlit, Backlit, vinyl, polyester, window film, mesh, leather, backlit film
Cleaning system			Positive pressure cleaning, anti-clogging flash function and capping system
Heating system			Pre, mid, post heater, cooling fan system
Environment			Temperature:20°C-28°C Humidity: 40%-60%
Rip software			Photoprint, UltraPrint, Topaz, Maintop, Caldera, Wasatch
Print head height			4mm (Max.)
Interface			USB 2.0
Power			AC220V, 50Hz/60Hz, 500W-1800W
Size and Weight	Machine		L4460mm×W905mm×H1280mm/348kg ±15kg
	Packing		L4590mm×W1150mm×H1580mm/590kg ±15kg

Wide Color Gamut
The 6-color wide format solvent printer is superior to its 4-color predecessors. A wider color gamut enables vivid printing effects with rich colors and smooth gradients. In the competitive world of advertising, this advantage can be the defining difference between mediocre works and outstanding ones.

Power-off Protection
The printer automatically saves critical system files in the event of unexpected power loss. Operations resume normally when power has been restored. This fail-safe effectively protects users against information loss.

Easy Maintenance
Individual color cleaning is available, greatly simplifying machine maintenance procedures.

Application
The wide format solvent printer FY-3266R/08R is utilized extensively by professionals in the Ad sign industry. It can accommodate a wide range of print media including mesh, vinyl, banner, vehicle wrap, window film, one-way vision vinyl, etc.
