Large Format Solvent Printer UD-3208P

Large Format Solvent Printer UD-3208P

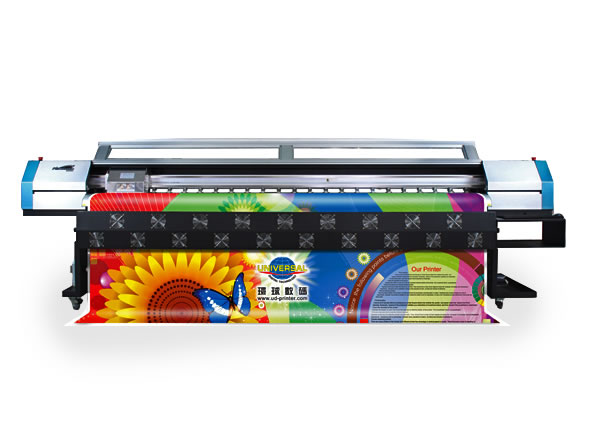

Phaeton Seiko Large Format Solvent Printer Model: UD-3204/06/08P

The Seiko large format solvent printer UD-3208P is one of the latest models launched by Phaeton. It has received recognition for its excellent working performance, quickly gaining momentum on the outdoor printing market. The device is equipped with the Seiko SPT 510/35pl Piezo print head. It has 510 nozzles and a printing width of 71.8mm, allowing for a printing speed of up to 101 sqm/hour. A nozzle size of 35pl enables the printing-resolution of 720*720 dpi. Power-off protection is available, saving system files automatically in the event of power failure; printing operations can resume normally when a steady supply of power can be maintained. This function is invaluable for preventing information loss.


Technical Specification
Model No. UD-3208PUD-3206PUD-3204P
Print headTypeSeiko Spt510 35pl
Quantity4 x 264
Resolution (dpi) 720dpi
Color4 color 6 color 4 color
Speed1 pass101 sqm/h51 sqm/h51 sqm/h
2 pass 76 sqm/h38 sqm/h38 sqm/h
3 pass 51 sqm/h26 sqm/h26 sqm/h
MediaWidth 3.3m
TypesFrontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film
Feeding and Take-upEquipped
Cleaning System Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System
Heating System Pre/Mid/Post Heater, Cooling Fan System
EnvironmentTemperature: 20℃ -28℃ Humidity:40%-60%
Rip Software Maintop, Photoprint, UltraPrint, Topaz, Wasatch, Caldera
Print head Height 4mm (Max)
InterfaceUSB 2.0
PowerAC220V, 50HZ/60HZ, 500W-1800W
Size
Weight
MachineL4500 x W905 x H 1260mm / 348± 15kg
PackingL4630 x W1050 x H 1550mm / 591± 15kg


Application

The Phaeton Seiko large format solvent printer UD-3208P is widely used in the ad sign industry in conjunction with various types of print media including mesh, vinyl, banner, vehicle wrap, window film, one-way vision vinyl, and more.
