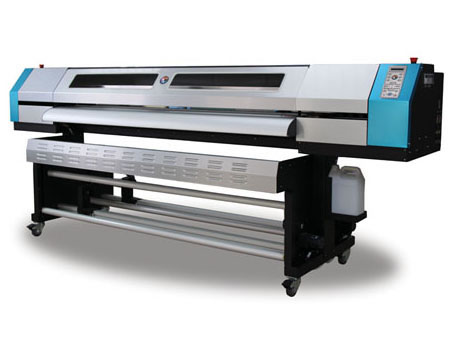

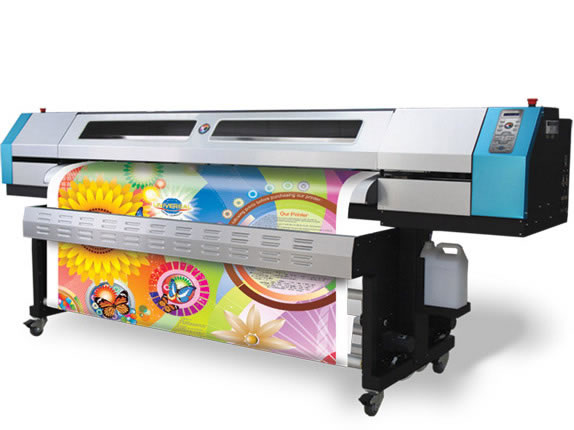

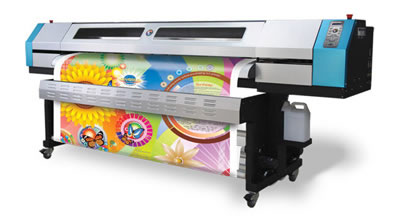

The Phaeton eco-solvent printer UD-251LA / UD2512LA is an affordable alternative to premium Roland, Mutoh, or Mimaki printers. This reasonably priced machine is widely recognized for its exceptional cost-performance. In terms of resolution, speed, and stability, this device is on par with our highly acclaimed UD181LA / UD-1812LA series. A machine width of 2.5m offers much greater flexibility than 1.8m models. User-friendly and easy to maintain, this printer is entirely compatible with bulk eco-solvent ink.

Technical Specifications

Model		UD-251LA	UD-2512LA
Print Head		Epson DX5
Number of Print Head		1 head	2 heads
Max Printing Width		2100mm
Printing Speed	Draft	4 pass 19 sqm/hour	4 pass 36 sqm/hour
	Standard	6 pass 15 sqm/hour	6 pass 24 sqm/hour
	Quality	8 pass 11 sqm/hour	8 pass 18 sqm/hour
	High Quality	8 pass 11 sqm/hour	8 pass 18 sqm/hour
	Backlit	12 pass 7 sqm/hour	12 pass 12 sqm/hour
Ink	Type	Water-based / Eco Solvent Ink
	Color	C M Y K
	Capacity	1 liter
	Ink supply system	Auto ink supply system
Media	Width	Max 2550mm
	Type	Vinyl, film, polyester, flex, backlit film, PS board, KT board, PVC foam board…
Auto Media Feeding System		Equipped Max media weigh 25kgs
Auto Cleaning System		Anti-clogged flash function and capping system
Pre-heating & Drying System		Equipped
Clamp		Equipped
Print Interface		USB 2.0
Print Head Height		2 -10mm from media
Rip Software		Ultraprint, Maintop, Photoprint, Shiraz , Wasatch
Input Power		AC220v, 50HZ/60HZ
Machine Dimension		L3780 * W990 * H 1260mm / 256kgs
Package Dimension		L3890 * W1100 * H 845mm / 457kgs

Performance
The machine is fitted with the EPSON DX5 print head. The print head contains 1440 nozzles, allowing for a 1440 dpi resolution. It also features high currency frequency, which enables high ink-spray and printing speeds. Our device offers the same level of performance as a Roland eco-solvent printer.

Stability
Our machine implements the XY AC servo motor and a precise gear-occlude with direct transmission. Together, these premium components can ensure accurate re-positioning even under high speed conditions. The THK guide rail offers additional stability, preventing deformations caused by extended periods of continuous operation.

Low Ink Cost
The Phaeton eco-solvent printer adopts a bulk ink supply system. This system is much more economical than Roland original cartridge ink, allowing users to significantly reduce expenses when processing high printing volumes.

Easy Maintenance
Our printer comes with intelligent cleaning and water-retaining equipment for proper print head care.

Application
The wide format eco-solvent printer UD-251LA / UD2512LA is utilized for both indoor and outdoor printing purposes. These performance machines can handle a large assortment of print media including mesh, vinyl, banner, vehicle wrap, window film, photo paper, oil canvas, perforated vinyl, etc.
